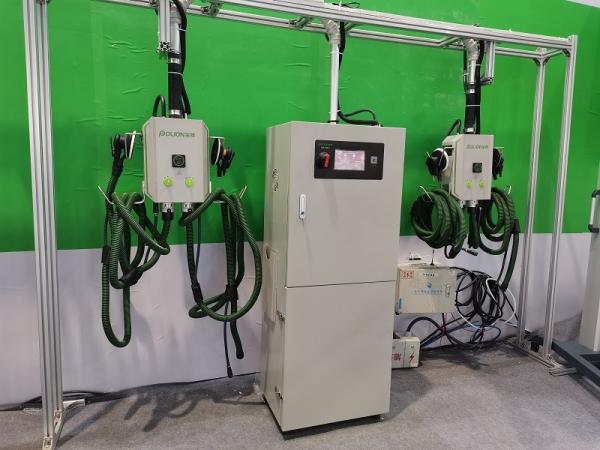

Pneumatic Sanding Machine Central Dust Extraction Collection System
For Dry Sanding Machine Used In Painting Workshop
Features:
Large flow duct collector electric control box,oil-water separator,
stainless steel dust tank, CE certification
The machine is equipped with a pulse automatic ash cleaning system.
It is time interval to set up automatic dust removal in working
conditions
Automatic pluse system
Gas storage tank and pulse valve
The fuselage is equipped with gas storage tanks and solenoid
valves, which can be automatic pluse ash system provides power, and
automatic ash cleaning is more thorough.
Separate dust tank
The separated dust collection barrel can lift the dust collecting
bucket with one pull and one pull. The machine can separate the
dust and materials quickly. The whole body is equipped with visible
small windows, and the materials in the barrel are clear at a
glance.
Quality upgrading
High efficiency filter
Dust collector is equipped with an industrial-grade dust collector
motor which with large air volume and low noise, which conforms to
the international certification of UL & CE.The cabinet adopts
modular design; the power, air volume, suction, suction mouth, pipe
diameter can be customized according to customer needs.
Technical Data Sheet :
Motor Power(Max.): ...........5.5KW/7.5KW/11KW (3 options)
Voltage:…………………… 380V/3PH
Machine Size(W*D*H): …1000*7500*1700mm
Packing Size(W*D*H):….. 1100*8500*1900mm
Product Advantage :
▲ 8 inches touch screen
The motor speed can be controlled by the screen. And maintenance
warning will be displayed.
▲ Hanging Unit
(1 unit for 2 working stations)
1 machine can come with 2~10 units.
▲Big silencer
Two big silencers to less the noise
▲ Two warming system, one outside
LCD can give alarm, as well as outside lights.
▲Big dust tank and dust bag (60L)
It allows multiple stations to sand at same while.
▲ Big extraction hose
Big hose is being at 75mm/110mm diameter.
Product Function :
1. One central dust extraction system can serve maximum 20 sanding
stations. 5.5KW/7.5KW/11KW are available.
2. The extraction force is adjustable by 8 inches' touch screen
3. Come with a anti-blowback valve
4. Main filter has self-clean function and has a long lifespan.
5. Touch screen controls the machine, easy to operate. Working
status and vidios about sanding technique are easy to master.
6. Main machine controls all the stations working status and easy
for trouble shooting.
7. Two silencer inside and less the noise to minimum level
8. Double filters working chamber is visualized.
9. It adapts "soft" start function.
10.Two alarming system. One on touch screen, and another alarming
lights outside. It is easy for the users to master all the
situation of the machine
